Schedule Stainless Steel Pipework

Schedule pipework grouped by pipe, weld fitting, flange and end connection.

Sort By Sort By: Featured
[SS-NB-FLA-20-RF-BLA-P40-304] DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 20.64
[SS-NB-FLA-20-RF-BLA-P6-304] DN20 (3/4" NB) PN6 RF BLIND FLANGE SS 304

DN20 (3/4" NB) PN6 RF BLIND FLANGE SS 304

Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 52mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 19.38
[SS-NB-FLA-15-RF-BLA-P40-304] DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 13.41
[SS-NB-FLA-15-RF-BLA-P6-304] DN15 (1/2" NB) PN6 RF BLIND FLANGE SS 304

DN15 (1/2" NB) PN6 RF BLIND FLANGE SS 304

Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Raised Face (RF): 40mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 12.63
[SS-NB-FLA-600-RF-BLA-300-316] DN600 (24" NB) ASA300 RF BLIND FLANGE SS 316

DN600 (24" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-600-RF-BLA-150-316] DN600 (24" NB) ASA150 RF BLIND FLANGE SS 316

DN600 (24" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)

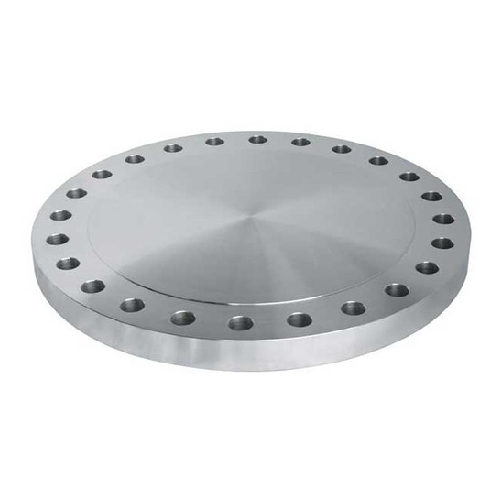

[SS-NB-FLA-500-RF-BLA-300-316] DN500 (20" NB) ASA300 RF BLIND FLANGE SS 316

DN500 (20" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-500-RF-BLA-150-316] DN500 (20" NB) ASA150 RF BLIND FLANGE SS 316

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-450-RF-BLA-300-316] DN450 (18" NB) ASA300 RF BLIND FLANGE SS 316

DN450 (18" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)

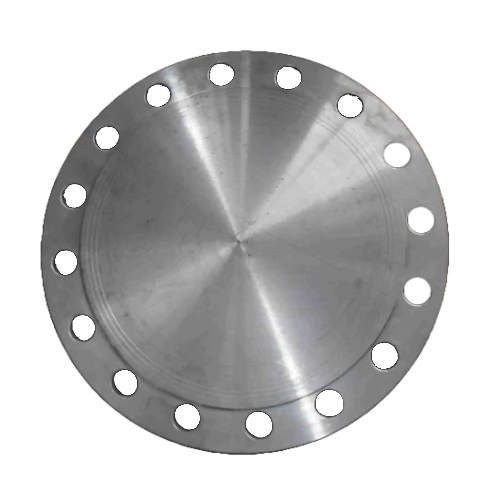

[SS-NB-FLA-450-RF-BLA-150-316] DN450 (18" NB) ASA150 RF BLIND FLANGE SS 316

DN450 (18" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-300-316] DN400 (16" NB) ASA300 RF BLIND FLANGE SS 316

DN400 (16" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-150-316] DN400 (16" NB) ASA150 RF BLIND FLANGE SS 316

DN400 (16" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 1,899.84
[SS-NB-FLA-350-RF-BLA-300-316] DN350 (14" NB) ASA300 RF BLIND FLANGE SS 316

DN350 (14" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-350-RF-BLA-150-316] DN350 (14" NB) ASA150 RF BLIND FLANGE SS 316

DN350 (14" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 1,504.92
[SS-NB-FLA-300-RF-BLA-300-316] DN300 (12" NB) ASA300 RF BLIND FLANGE SS 316

DN300 (12" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-300-RF-BLA-150-316] DN300 (12" NB) ASA150 RF BLIND FLANGE SS 316

DN300 (12" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 1,177.86
[SS-NB-FLA-250-RF-BLA-300-316] DN250 (10" NB) ASA300 RF BLIND FLANGE SS 316

DN250 (10" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-250-RF-BLA-150-316] DN250 (10" NB) ASA150 RF BLIND FLANGE SS 316

DN250 (10" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 713.34
[SS-NB-FLA-200-RF-BLA-300-316] DN200 (8" NB) ASA300 RF BLIND FLANGE SS 316

DN200 (8" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-200-RF-BLA-150-316] DN200 (8" NB) ASA150 RF BLIND FLANGE SS 316

DN200 (8" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 518.40
[SS-NB-FLA-150-RF-BLA-300-316] DN150 (6" NB) ASA300 RF BLIND FLANGE SS 316

DN150 (6" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 491.10
[SS-NB-FLA-150-RF-BLA-150-316] DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316

DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 248.13
[SS-NB-FLA-125-RF-BLA-300-316] DN125 (5" NB) ASA300 RF BLIND FLANGE SS 316

DN125 (5" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 363.84
[SS-NB-FLA-125-RF-BLA-150-316] DN125 (5" NB) ASA150 RF BLIND FLANGE SS 316

DN125 (5" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 211.71
[SS-NB-FLA-100-RF-BLA-300-316] DN100 (4" NB) ASA300 RF BLIND FLANGE SS 316

DN100 (4" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 322.11
[SS-NB-FLA-100-RF-BLA-150-316] DN100 (4" NB) ASA150 RF BLIND FLANGE SS 316

DN100 (4" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 163.47
[SS-NB-FLA-80-RF-BLA-300-316] DN80 (3" NB) ASA300 RF BLIND FLANGE SS 316

DN80 (3" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 163.83
[SS-NB-FLA-80-RF-BLA-150-316] DN80 (3" NB) ASA150 RF BLIND FLANGE SS 316

DN80 (3" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 120.81
[SS-NB-FLA-65-RF-BLA-300-316] DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 152.79
[SS-NB-FLA-65-RF-BLA-150-316] DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 138.87
[SS-NB-FLA-50-RF-BLA-300-316] DN50 (2" NB) ASA300 RF BLIND FLANGE SS 316

DN50 (2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 80.88
[SS-NB-FLA-50-RF-BLA-150-316] DN50 (2" NB) ASA150 RF BLIND FLANGE SS 316

DN50 (2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 60.72
[SS-NB-FLA-40-RF-BLA-300-316] DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 64.59
[SS-NB-FLA-40-RF-BLA-150-316] DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 37.02
[SS-NB-FLA-32-RF-BLA-300-316] DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 316

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 52.14
[SS-NB-FLA-32-RF-BLA-150-316] DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 316

DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 33.45
[SS-NB-FLA-25-RF-BLA-300-316] DN25 (1" NB) ASA300 RF BLIND FLANGE SS 316

DN25 (1" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 32.88
[SS-NB-FLA-25-RF-BLA-150-316] DN25 (1" NB) ASA150 RF BLIND FLANGE SS 316

DN25 (1" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 21.03
[SS-NB-FLA-20-RF-BLA-300-316] DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316

DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 31.26
[SS-NB-FLA-20-RF-BLA-150-316] DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316

DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 16.29
[SS-NB-FLA-15-RF-BLA-300-316] DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 15.87
[SS-NB-FLA-15-RF-BLA-150-316] DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 10.92
[SS-NB-FLA-600-RF-BLA-300-304] DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304

DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-600-RF-BLA-150-304] DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304

DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-500-RF-BLA-300-304] DN500 (20" NB) ASA300 RF BLIND FLANGE SS 304

DN500 (20" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-500-RF-BLA-150-304] DN500 (20" NB) ASA150 RF BLIND FLANGE SS 304

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-450-RF-BLA-300-304] DN450 (18" NB) ASA300 RF BLIND FLANGE SS 304

DN450 (18" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-450-RF-BLA-150-304] DN450 (18" NB) ASA150 RF BLIND FLANGE SS 304

DN450 (18" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-300-304] DN400 (16" NB) ASA300 RF BLIND FLANGE SS 304

DN400 (16" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-150-304] DN400 (16" NB) ASA150 RF BLIND FLANGE SS 304

DN400 (16" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-350-RF-BLA-300-304] DN350 (14" NB) ASA300 RF BLIND FLANGE SS 304

DN350 (14" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-350-RF-BLA-150-304] DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-300-RF-BLA-300-304] DN300 (12" NB) ASA300 RF BLIND FLANGE SS 304

DN300 (12" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-300-RF-BLA-150-304] DN300 (12" NB) ASA150 RF BLIND FLANGE SS 304

DN300 (12" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-250-RF-BLA-300-304] DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304

DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-250-RF-BLA-150-304] DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304

DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-200-RF-BLA-300-304] DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304

DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-200-RF-BLA-150-304] DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304

DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-150-RF-BLA-300-304] DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304

DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-150-RF-BLA-150-304] DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304

DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 166.98
[SS-NB-FLA-125-RF-BLA-300-304] DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304

DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-125-RF-BLA-150-304] DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304

DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-100-RF-BLA-300-304] DN100 (4" NB) ASA300 RF BLIND FLANGE SS 304

DN100 (4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-100-RF-BLA-150-304] DN100 (4" NB) ASA150 RF BLIND FLANGE SS 304

DN100 (4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-80-RF-BLA-300-304] DN80 (3" NB) ASA300 RF BLIND FLANGE SS 304

DN80 (3" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-80-RF-BLA-150-304] DN80 (3" NB) ASA150 RF BLIND FLANGE SS 304

DN80 (3" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 80.67
[SS-NB-FLA-65-RF-BLA-300-304] DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-65-RF-BLA-150-304] DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-50-RF-BLA-300-304] DN50 (2" NB) ASA300 RF BLIND FLANGE SS 304

DN50 (2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-50-RF-BLA-150-304] DN50 (2" NB) ASA150 RF BLIND FLANGE SS 304

DN50 (2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 34.95
[SS-NB-FLA-40-RF-BLA-300-304] DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-40-RF-BLA-150-304] DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 28.35
[SS-NB-FLA-32-RF-BLA-300-304] DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 304

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-32-RF-BLA-150-304] DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 304

DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-25-RF-BLA-300-304] DN25 (1" NB) ASA300 RF BLIND FLANGE SS 304

DN25 (1" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-25-RF-BLA-150-304] DN25 (1" NB) ASA150 RF BLIND FLANGE SS 304

DN25 (1" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-20-RF-BLA-300-304] DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304

DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-20-RF-BLA-150-304] DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304

DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-15-RF-BLA-300-304] DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-15-RF-BLA-150-304] DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-BSP-150-CRO-8-316] DN8 (1/4" NB) BSP 150# 4 WAY CROSS PIECE SS 316

DN8 (1/4" NB) BSP 150# 4 WAY CROSS PIECE SS 316

Thread: 1/4" BSPP Female x Female x Female x Female
OD = 20mm
Centre of Cross to end of Female Outlet = 18.8mm

Material: Stainless
Grade: 316
20bar rating

Standards:
Nominal Bore, Threaded, Equal, Cross, Cross Piece, Screwed, Low Pressure, 150 psi
(0)
£ 4.65
[SS-NB-BSP-150-HNI-8-316] DN8 (1/4" NB) BSP 150# HEX NIPPLE SS 316

DN8 (1/4" NB) BSP 150# HEX NIPPLE SS 316

Thread: 1/4" BSPT Male x Male
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
(0)
£ 1.32
[SS-NB-BSP-150-MF-UNIF-32-316] DN32 (1.1/4" NB) BSPT X BSPP 150# (MXF) FLAT SEAT UNION SS 316 C/W PTFE SEAL

DN32 (1.1/4" NB) BSPT X BSPP 150# (MXF) FLAT SEAT UNION SS 316 C/W PTFE SEAL

Thread: 1.1/4" BSPT Male x BSPP Female
Material: Stainless
Grade: 316
Flat Face
Comes with PTFE Seal

Alternative terminology:
Male x Female, MF, MXF, Union, Threaded, Screwed, Street Union
(0)
£ 24.78
[SS-NB-BSP-150-LN-20-316] DN20 (3/4" NB) BSPP HEXAGON LOCK NUT SS 316 150LB

DN20 (3/4" NB) BSPP HEXAGON LOCK NUT SS 316 150LB

(0)
£ 2.31
[SS-NB-NPT-6K-TEE-15-316] DN15 (1/2" NB) NPT 6000# EQUAL TEE SS 316

DN15 (1/2" NB) NPT 6000# EQUAL TEE SS 316

Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Stainless Steel
(0)
£ 119.64
[SS-NB-FLA-RF-SO-A150-65-FUL-304] DN65 (2.1/2" NB) ASA150 RF SLIP ON FLANGE SS 304

DN65 (2.1/2" NB) ASA150 RF SLIP ON FLANGE SS 304

Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 5/8"⌀ or M16 Bolts
PCD: 139.7mm
Flange Diameter: 177.8mm
Flange Thickness: 22.3mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 44.82
[SS-NB-FLA-1200-FF-BLA-P6-316] DN1200 (48" NB) PN6 FF BLIND FLANGE SS 316

DN1200 (48" NB) PN6 FF BLIND FLANGE SS 316

Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 3.1 BS EN 10204 Material Certification


Part of our Flanges and Flanged Connections Range
(0)
£ 21,824.40
[SS-NB-NPT-6K-PLU-15-316] DN15 (1/2" NB) NPT 6000# HEX HEAD PLUG END SS 316

DN15 (1/2" NB) NPT 6000# HEX HEAD PLUG END SS 316

Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Stainless Steel
(0)
£ 6.69
[SS-NB-FLA-FF-SO-P16-304-D-304L] DN300 (12" NB) PN16 (D THK) FF SLIP ON FLANGE BORED 305mm SS 304/L

DN300 (12" NB) PN16 (D THK) FF SLIP ON FLANGE BORED 305mm SS 304/L

Suits an outside diameter (OD) of: 304mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 12 off to suit M24 Bolts
PCD: 410mm
Flange Diameter: 460mm
Flange Thickness: 20mm (Table D)
Inside diameter to suit 304mm Metric / Hygienic / Dairy (No Chamfer)

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

Part of our Flanges and Flanged Connections Range
(0)
£ 358.80
[SS-NB-NPT-10K-SOC-10-316] 3/8" NPT FEMALE FULL COUPLING SS316, 10,000PSI

3/8" NPT FEMALE FULL COUPLING SS316, 10,000PSI

3/8" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless 316
10,000PSI rated
(0)
£ 59.22
[SS-NB-NPT-10K-HNI-15-316] 1/2" NPT MALE HEX NIPPLE X 150MM LONG, SS316, 10,000PSI

1/2" NPT MALE HEX NIPPLE X 150MM LONG, SS316, 10,000PSI

Thread: 1/2" NPT Male
Material: Forged Stainless Steel
Grade: 316
10,000PSI
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Stainless Steel
(0)
£ 73.95
[SS-NB-NPT-10K-HNI-15-10-316] 1/2" NPT MALE X 3/8 NPT FEMALE BUSH, SS316, 10,000PSI

1/2" NPT MALE X 3/8 NPT FEMALE BUSH, SS316, 10,000PSI

Side One: 1/2" NPT Male
Side Two: 3/8" NPT Male
Material: Forged Stainless Steel
Grade: 316
10,000 PSI
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Stainless Steel
(0)
£ 39.84
[SS-NB-NPT-10K-BUS-15-10-316] 1/2" NPT MALE X 3/8 NPT FEMALE BUSH, SS316, 10,000PSI

1/2" NPT MALE X 3/8 NPT FEMALE BUSH, SS316, 10,000PSI

SIDE ONE: 1/2" NPT MALE
SIDE TWO: 3/8" NPT FEMALE

REDUCING BUSH
NPT
10,000PSI
316/L
(0)
£ 75.18
[SS-NB-FLA-BSPT-150-15-316] DN15 (1/2" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

DN15 (1/2" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

Suits an outside diameter (OD) of: 21.3mm
Thread Type: BSP Taper
Material: Stainless
Grade: 316
Standards: ANSI 150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 60.4mm
Flange Diameter: 88.9mm
Flange Thickness: 11.1mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded, Screwed Flange, Tapped, BSPT Taper, Stainless steel

Part of our Flanges and Flanged Connections Range
(0)
£ 10.35
[SS-NB-BW-ELB-45-LR-150-S80-316-SML] DN150 (6" NB) SCHEDULE 80S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 316

DN150 (6" NB) SCHEDULE 80S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
(0)
£ 405.60
[SS-NB-BW-ELB-90-150-S80-316-SML] DN150 (6" NB) SCHEDULE 80S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316

DN150 (6" NB) SCHEDULE 80S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 15.3kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
(0)
£ 483.60
[SS-NB-BW-CON-250x200-S80-SML-316] DN250 X DN200 (10" X 8" NB) SCHEDULE 80S A403 SEAMLESS CONCENTRIC REDUCER SS 316

DN250 X DN200 (10" X 8" NB) SCHEDULE 80S A403 SEAMLESS CONCENTRIC REDUCER SS 316

Outside Diameter (OD): 273 X 219mm
Wall Thickness: 12.70 X 12.70mm
Length: 178mm
(0)
£ 795.60
[SS-PIP-250-S10-304-SML] DN250 (10" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

DN250 (10" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

Outside Diameter (OD): 273mm
Wall Thickness (WT): 4.19mm (Sch10)
Material: Stainless
Grade: 304/L
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
(0)
[SS-PIP-200-S10-304-SML] DN200 (8" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

DN200 (8" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 304/L
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 20.1kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
(0)
[SS-PIP-150-S10-304-SML] DN150 (6" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

DN150 (6" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304/L

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 304/L
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
(0)
