DN15 (1/2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.11mm

Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 3.56 3.56 GBP Limited Stock

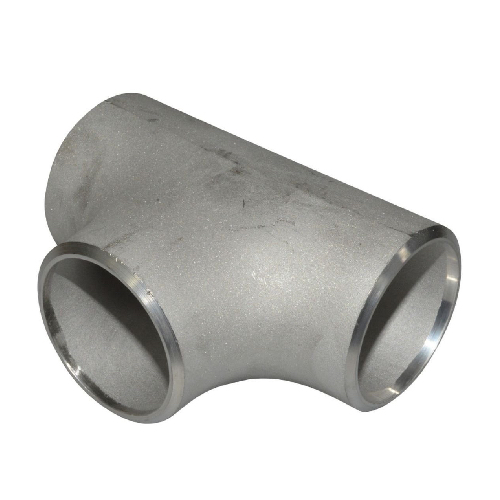

DN15 (½" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 14.96 14.96 GBP Available to Order Enquire

DN15 (½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 5.88 5.88 GBP Available to Order Enquire

DN20 (¾" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to End: 28.6mm
Schedule: 10S
Weight: 0.16kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 7.16 7.16 GBP In Stock

DN20 (¾" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm

Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 8.92 8.92 GBP Available to Order Enquire

DN20 (¾" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 7.28 7.28 GBP Available to Order Enquire

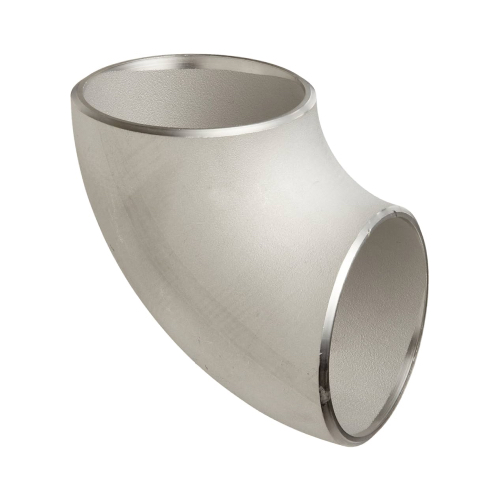

DN20 (¾" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 8.92 8.92 GBP Available to Order Enquire

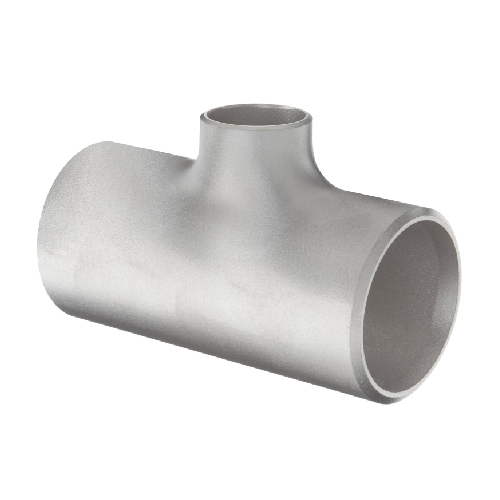

DN20 x DN15 (3/4 x 1/2" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.11 x 2.11mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 19.96 19.96 GBP Available to Order Enquire

DN25 (1" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to End: 38.1mm
Schedule: 10S
Weight: 0.35kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 18.00 18.0 GBP Limited Stock

DN25 (1" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 7.68 7.68 GBP Available to Order Enquire

DN25 (1" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 8.96 8.96 GBP Available to Order Enquire

DN25 (1" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 7.32 7.32 GBP Available to Order Enquire

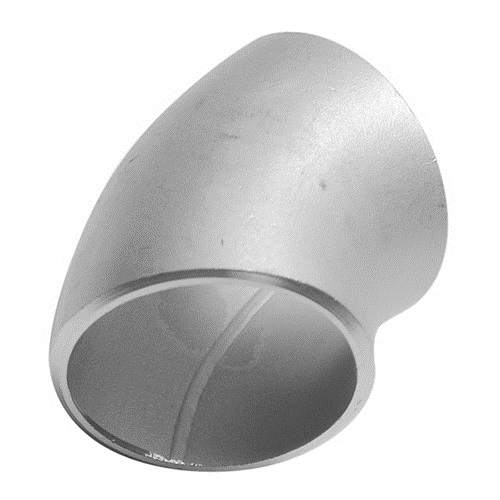

DN25 (1" NB) SCHEDULE 10s WELDED ELBOW 45° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£ 6.60 6.6 GBP Available to Order Enquire

DN25 (1" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£ 9.04 9.04 GBP Available to Order Enquire

DN25 x DN20 (1 x 3/4" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 33 x 27mm
Wall Thickness (Run x Branch): 2.77 x 2.11mm
Centre to End (Run): 38mm
Centre to End (Branch): 38mm
Schedule: 10S
Weight: 0.19kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 33.12 33.12 GBP Available to Order Enquire

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to End: 47.6mm
Schedule: 10S
Weight: 0.6kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 24.56 24.56 GBP In Stock

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 10.36 10.36 GBP Available to Order Enquire

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 12.28 12.28 GBP Available to Order Enquire

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 10.36 10.36 GBP In Stock

DN32 x DN25 (1.1/4 x 1" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 2.77 x 2.77mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: 10S
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 34.32 34.32 GBP Available to Order Enquire

DN40 (1½" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to End: 57.2mm
Schedule: 10S
Weight: 0.92kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 29.24 29.24 GBP Available to Order Enquire

DN40 (1½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 23.24 23.24 GBP Available to Order Enquire

DN40 (1½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 14.32 14.32 GBP Available to Order Enquire

DN40 (1½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 23.24 23.24 GBP Available to Order Enquire

DN50 (2" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to End: 63.5mm
Schedule: 10S
Weight: 1.34kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 36.88 36.88 GBP Available to Order Enquire

DN50 (2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 16.24 16.24 GBP Available to Order Enquire

DN50 (2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 21.28 21.28 GBP Available to Order Enquire

DN50 (2" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 16.24 16.24 GBP Available to Order Enquire

DN50 x DN40 (2 x 1.1/2" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 60 x 48mm
Wall Thickness (Run x Branch): 2.77 x 2.77mm
Centre to End (Run): 64mm
Centre to End (Branch): 60mm
Schedule: 10S
Weight: 0.59kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 39.40 39.4 GBP Available to Order Enquire

DN65 (2½" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to End: 76.2mm
Schedule: 10S
Weight: 2.36kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 55.52 55.52 GBP Available to Order Enquire

DN65 (2½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 26.72 26.72 GBP Available to Order Enquire

DN65 (2½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 34.92 34.92 GBP Available to Order Enquire

DN65 (2½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 26.72 26.72 GBP Available to Order Enquire

DN65 x DN50 (2.1/2 x 2" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 73 x 60mm
Wall Thickness (Run x Branch): 3.05 x 2.77mm
Centre to End (Run): 76mm
Centre to End (Branch): 70mm
Schedule: 10S
Weight: 0.95kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 61.16 61.16 GBP Limited Stock

DN80 (3" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 10S
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 74.24 74.24 GBP Available to Order Enquire

DN80 (3" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 37.04 37.04 GBP Available to Order Enquire

DN80 (3" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 48.28 48.28 GBP Available to Order Enquire

DN80 (3" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 37.04 37.04 GBP Available to Order Enquire

DN80 x DN50 (3 x 2" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 89 x 60mm
Wall Thickness (Run x Branch): 3.05 x 2.77mm
Centre to End (Run): 86mm
Centre to End (Branch): 76mm
Schedule: 10S
Weight: 1.23kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 71.32 71.32 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to End: 104.8mm
Schedule: 10S
Weight: 5.72kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 112.76 112.76 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 52.80 52.8 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 66.00 66.0 GBP Limited Stock

DN100 (4" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 61.88 61.88 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 3.05mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£ 84.00 84.0 GBP Available to Order Enquire

DN100 x DN80 (4 x 3" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 3.05 x 3.05mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 10S
Weight: 2.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 127.12 127.12 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to End: 123.8mm
Schedule: 10S
Weight: 8.98kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 189.40 189.4 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 103.12 103.12 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 133.76 133.76 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 103.12 103.12 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 254.16 254.16 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 140.12 140.12 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 199.80 199.8 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 140.12 140.12 GBP Available to Order Enquire

DN150 x DN100 (6 x 4" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 3.40 x 3.05mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 10S
Weight: 5.10kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 246.00 246.0 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 10S
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 446.16 446.16 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 261.76 261.76 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 373.88 373.88 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 261.76 261.76 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Contact us for pricing 0.0 GBP Available to Order Enquire

DN200 x DN150 (8 x 6" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 433.96 433.96 GBP Available to Order Enquire

DN250 (10" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to End: 216.0mm
Schedule: 10S
Weight: 41.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

£ 1,261.04 1261.04 GBP Available to Order Enquire

DN250 (10" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm

Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 596.40 596.4 GBP Available to Order Enquire

DN250 (10" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 722.28 722.28 GBP Available to Order Enquire

DN250 (10" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 596.40 596.4 GBP Available to Order Enquire

DN250 X DN150 (10" X 6" NB) SCHEDULE 10S A403 WELDED CONCENTRIC REDUCER SS 316

Outside Diameter (OD): 273 X 168mm
Wall Thickness: 4.19 X 3.40mm
Length: 178mm

£ 251.40 251.4 GBP Available to Order Enquire

DN250 x DN200 (10 x 8" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316

Outside Diameter (OD): 273 x 219mm
Wall Thickness (Run x Branch): 4.19 x 3.76mm
Centre to End (Run): 216mm
Centre to End (Branch): 203mm
Schedule: 10S
Weight: 16.70kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

£ 745.52 745.52 GBP Available to Order Enquire
