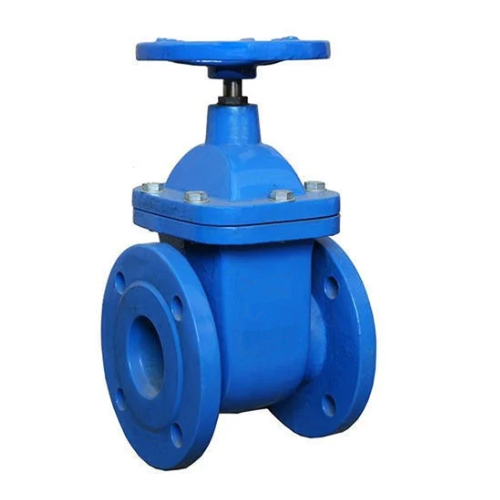

DN50 (2" NB) PN16 FLANGED CAST IRON GATE VALVE MANUAL HANDWHEEL (DIN 3202)
Technical Specification
Product Code
CI-VAL-GAT-P16-50-HW
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
11.5 KG
Flanged to suit: 2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 150mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16
Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve
Internal Reference:
CI-VAL-GAT-P16-50-HW
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 60.30mm |
