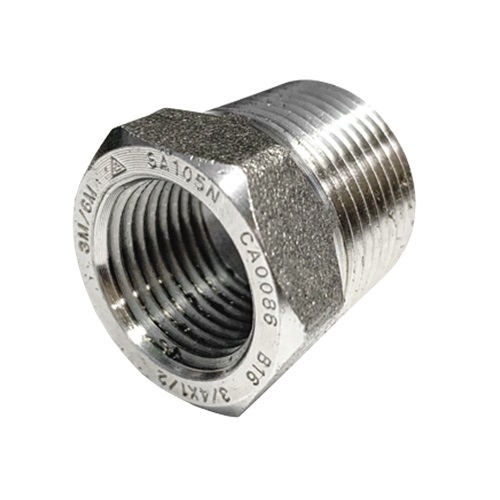

DN25 X 15 (1" X 1/2" NB) BSPT 3000# FS REDUCING BUSH A105N
Fittings
Technical Specification
Product Code
CS-NB-BSP-3K-BUS-25-15-A105N
Size (Inch)
1"
Size (Inch)
1/2"
Outside Diameter (mm)
33.40mm
Weight
0.12 KG
Outside Diameter of Male (OD): 33.4mm
Outside Diameter of Female (OD): 21.3mm
Material: Forged Steel
Grade: A105 N
Standards: BS3799, ASME B16.11, MSS SP-97 & MSS SP-833
Ends: BSPT Threaded
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification
Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)
Alternative terminology:
Bush, Reducing Bush, Reducer,
Internal Reference:
CS-NB-BSP-3K-BUS-25-15-A105N
Specifications
| Size (Inch) | 1", 1/2" |
| Outside Diameter (mm) | 33.40mm |
