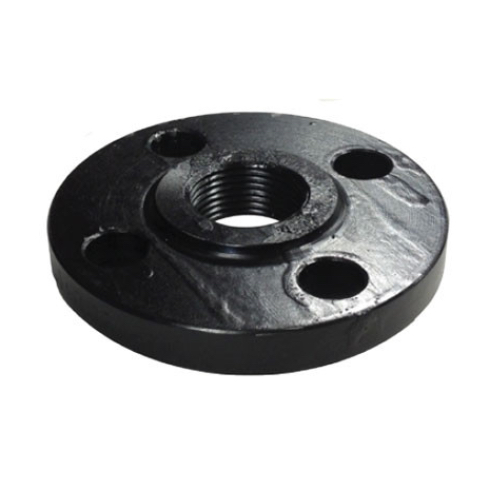

DN10 (3/8" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

DN10 (3/8" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

Product code: CS-NB-FLA-10-RF-SCR-P10-P16-P25-P40-S235JR-BLK

(0 review)
Order other sizes
Product description

Flange outside diameter: 90mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 60mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Connection / End
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Grade S235JR
Outside Diameter (mm) 17.10mm
Nominal Size DN10
Connection / End BSPP
Pressure Rating PN10 / PN16 / PN25 / PN40
Flange Face Raised face (RF)
Contact Us
Grade: S235JR
Outside Diameter (mm): 17.10mm
Nominal Size: DN10
Connection / End: BSPP
Pressure Rating: PN10 / PN16 / PN25 / PN40
Flange Face: Raised face (RF)

Internal Reference: CS-NB-FLA-10-RF-SCR-P10-P16-P25-P40-S235JR-BLK
