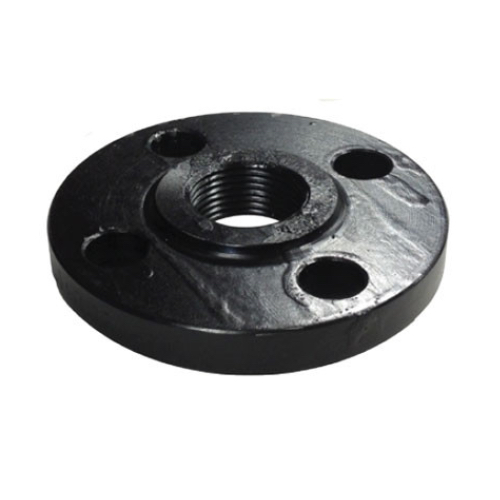

DN10 (3/8" NB) PN6 RF BSPP THREADED FLANGE S235JR BLACK
Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6
Internal Reference:
CS-NB-FLA-10-RF-SCR-PN6-S235JR-BLK
Specifications
| Size (Inch) | 3/8" |
| Outside Diameter (mm) | 17.10mm |
