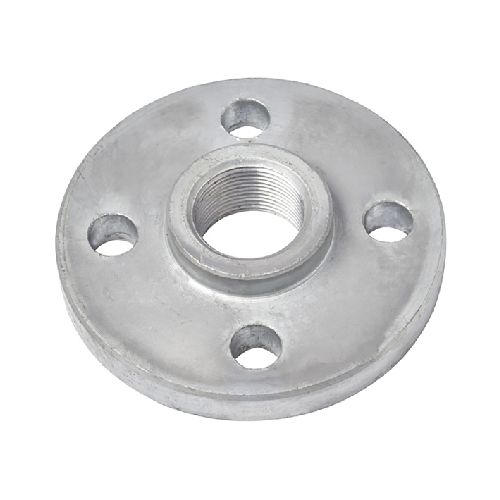

DN10 (3/8" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

DN10 (3/8" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

Technical Specification
Product Code
CS-NB-FLA-10-RF-SCR-PN6-S235JR-GAL
Size (Inch)
3/8"
Outside Diameter (mm)
17.10mm
Weight
0.32 KG
https://www.integraflow.co.uk/web/image/product.template/15174/image_1920?unique=bb3896f
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 0.32 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6
