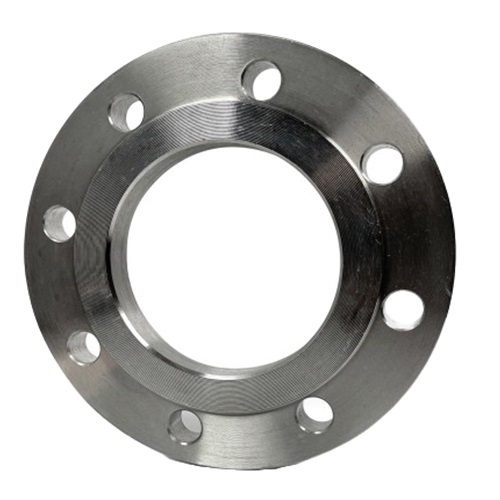

DN100 (4" NB) PN16 RF SLIP ON PLATE FLANGE CS S235 JR
Flanges
Technical Specification
Product Code
CS-NB-FLA-100-RF-SO-P16-S235JR
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
4.39 KG
Suits an outside diameter (OD) of: 114.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 180mm
Flange Diameter: 220mm
Flange Thickness: 20mm
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Mild Steel, Carbon Steel
Internal Reference:
CS-NB-FLA-100-RF-SO-P16-S235JR
Specifications
| Size (Inch) | 4" |
| Outside Diameter (mm) | 114.30mm |
