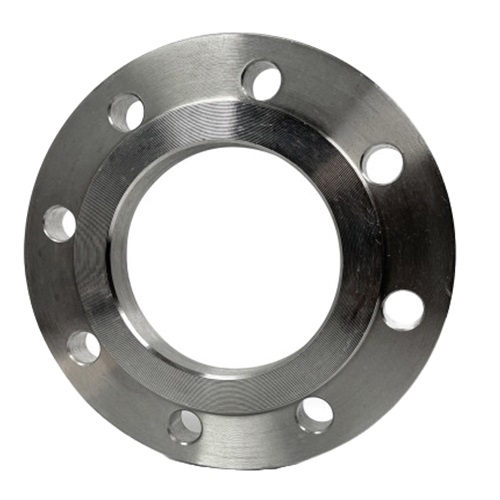

DN100 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR

DN100 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR

Product code: CS-NB-FLA-100-RF-SO-P25-P40-S235JR

(0 review)
Order other sizes
Product description

Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 235mm (D)
PCD: 190mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Carbon Steel
Grade S235JR
Outside Diameter (mm) 114.30mm
Nominal Size DN100
Pressure Rating PN25 / PN40
Flange Face Raised face (RF)
Contact Us
Material: Carbon Steel
Grade: S235JR
Outside Diameter (mm): 114.30mm
Nominal Size: DN100
Pressure Rating: PN25 / PN40
Flange Face: Raised face (RF)

Internal Reference: CS-NB-FLA-100-RF-SO-P25-P40-S235JR
