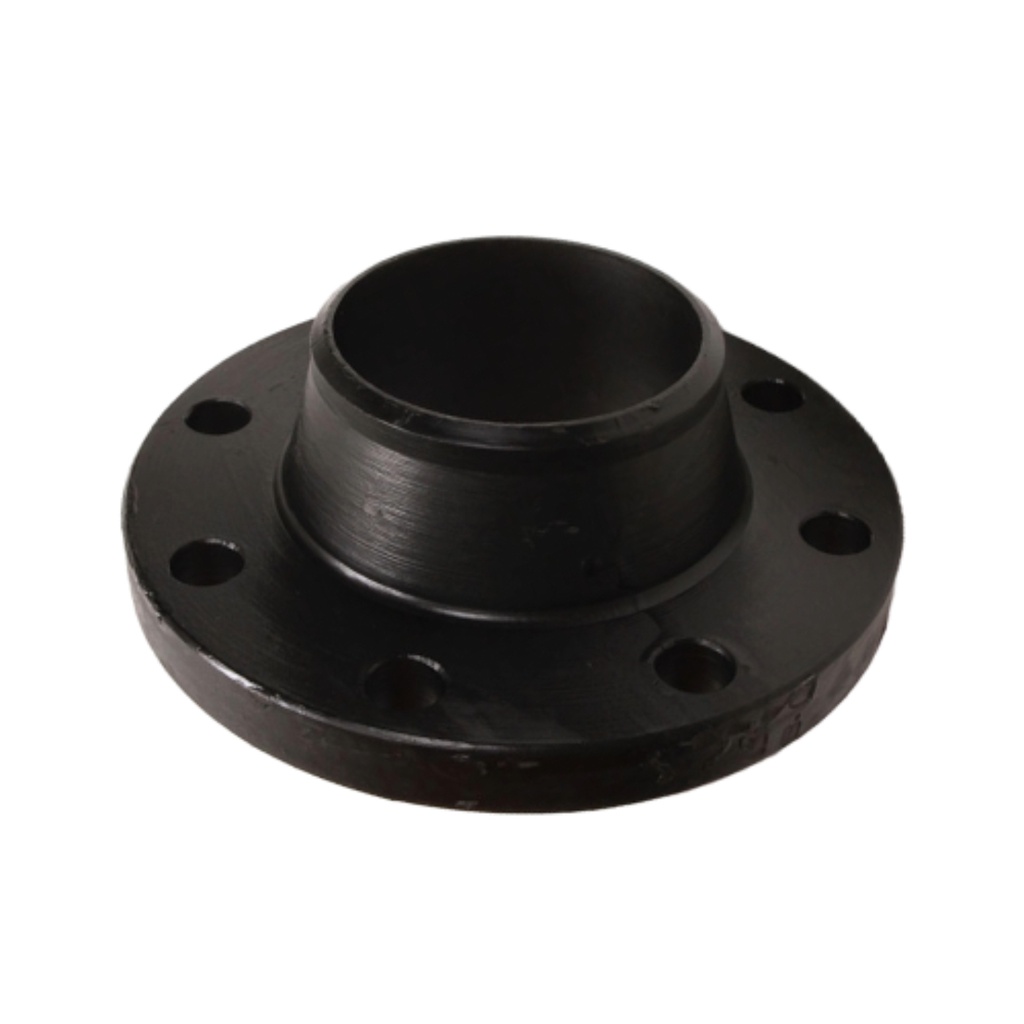

DN100 (4" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

DN100 (4" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/22560/image_1920?unique=479f7ad
(0 review)
Outside diameter (O): 235.00mm
Flange thickness (C): 24mm
Pitch circle diameter (K): 190.00mm
Hub base diameter (Y): 134.00mm
Raised face height (RF): 3.0mm
Raised face diameter (R): 162.00mm
Number of bolt holes: 8
Material: A105N
Rating: PN40
Type: Weld Neck Flange

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, PN40, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

£ 47.67 47.67 GBP £ 47.67 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us



    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-100-RF-WN-STD-S40-P40-A105N
