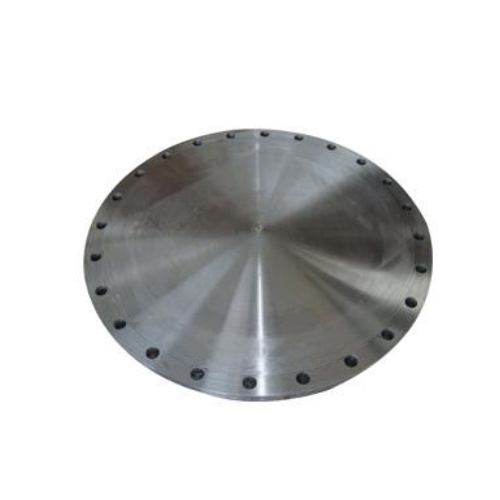

DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR

DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR

Product code: CS-NB-FLA-1000-FF-BLA-P6-S235JR

(0 review)
Order other sizes
Product description


Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

  • Material
  • Grade
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Carbon Steel
Grade S235JR
Nominal Size DN1000
Pressure Rating PN6
Flange Face Flat face (FF)
Contact Us
Material: Carbon Steel
Grade: S235JR
Nominal Size: DN1000
Pressure Rating: PN6
Flange Face: Flat face (FF)

Internal Reference: CS-NB-FLA-1000-FF-BLA-P6-S235JR
