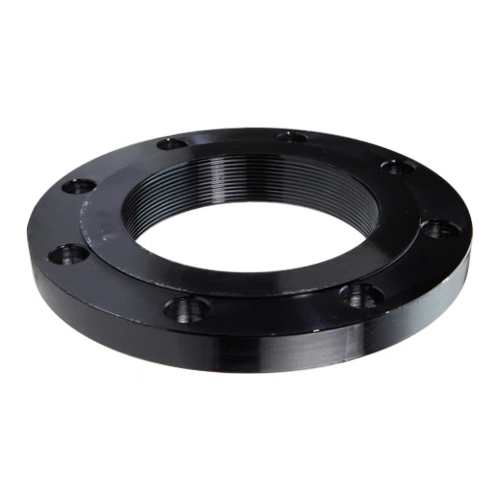

DN125 (5" NB) PN16 RF BSPP THREADED FLANGE S235JR BLACK

DN125 (5" NB) PN16 RF BSPP THREADED FLANGE S235JR BLACK

Technical Specification
Product Code
CS-NB-FLA-125-RF-SCR-P16-S235JR-BLK
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
6.07 KG
https://www.integraflow.co.uk/web/image/product.template/15217/image_1920?unique=335cd53
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 6.07 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-125-RF-SCR-P16-S235JR-BLK

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
