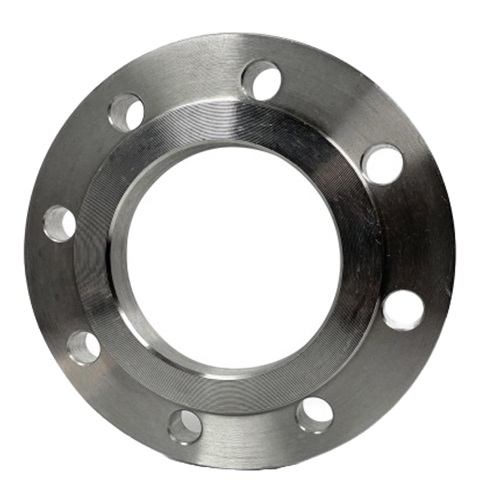

DN125 (5" NB) PN16 RF SLIP ON PLATE FLANGE CS S235 JR
Flanges
Technical Specification
Product Code
CS-NB-FLA-125-RF-SO-P16-S235JR
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
5.41 KG
Suits an outside diameter (OD) of: 141.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 210mm
Flange Diameter: 250mm
Flange Thickness: 22mm
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Mild Steel, Carbon Steel
Internal Reference:
CS-NB-FLA-125-RF-SO-P16-S235JR
Specifications
| Size (Inch) | 5" |
| Outside Diameter (mm) | 141.30mm |
