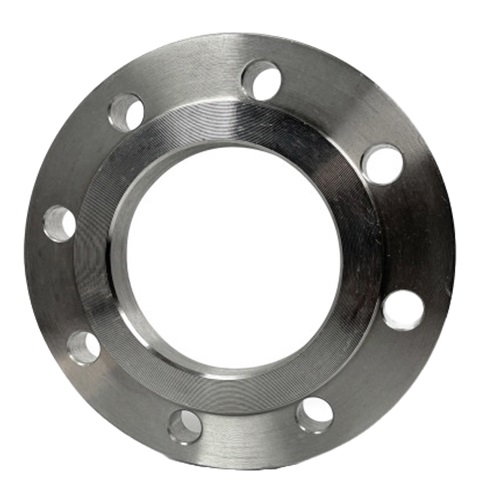

DN125 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-125-RF-SO-P25-P40-S235JR
Outside Diameter (mm)
141.30mm
Weight
8.19 KG
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Internal Reference:
CS-NB-FLA-125-RF-SO-P25-P40-S235JR
Specifications
| Outside Diameter (mm) | 141.30mm |
