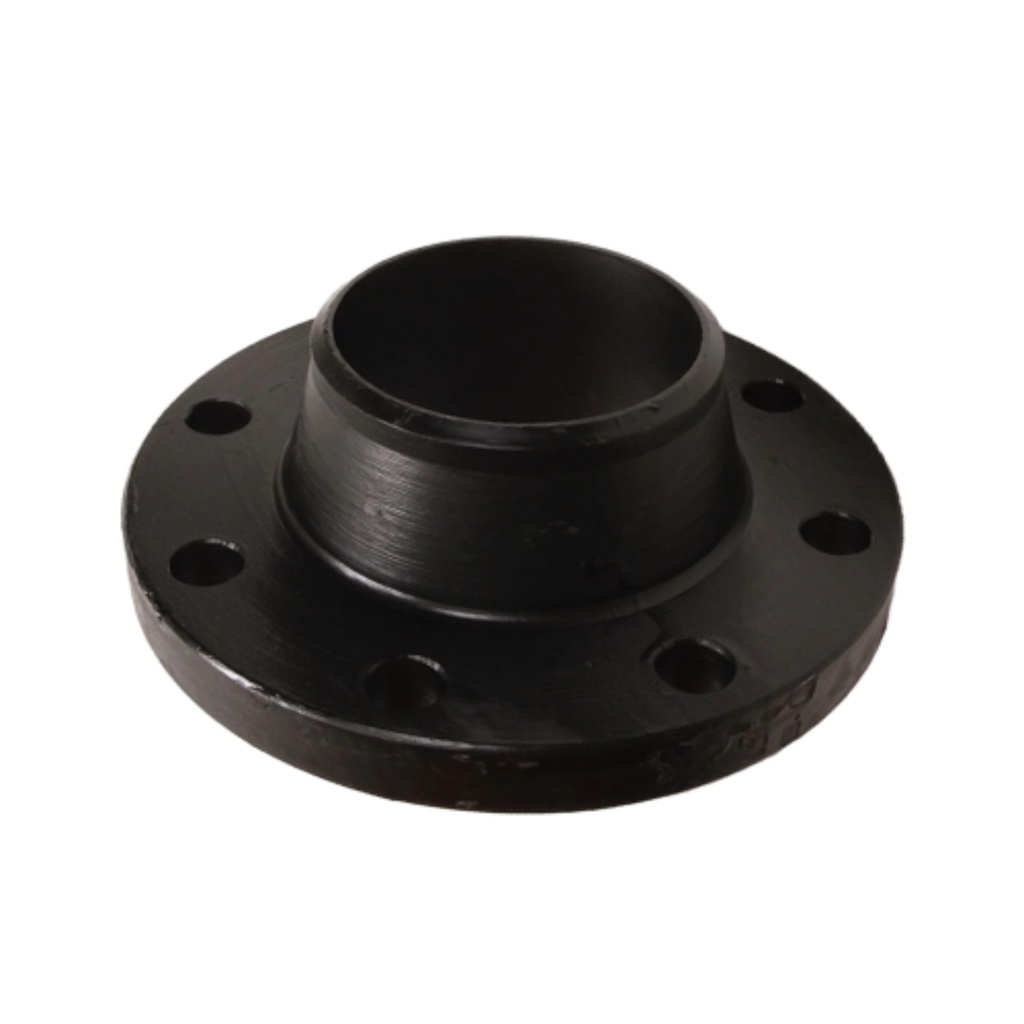

DN125 (5" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

DN125 (5" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-125-RF-WN-S40-300-A105N
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
15.2 KG
https://www.integraflow.co.uk/web/image/product.template/15833/image_1920?unique=335cd53
(0 review)

£ 113.31 113.31 GBP £ 113.31 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 15.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-125-RF-WN-S40-300-A105N

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
