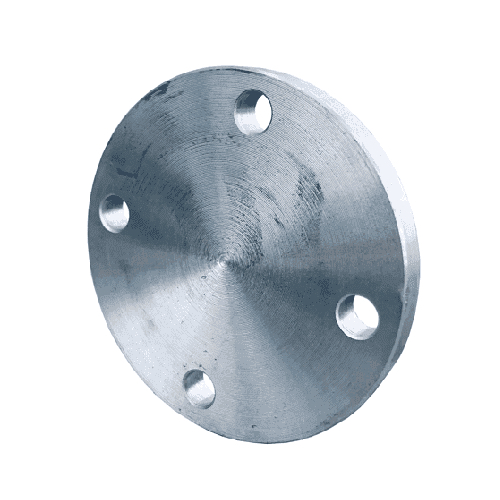

DN15 (1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Flat Face (RF): 40mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Internal Reference:
CS-NB-FLA-15-FF-BLA-P6-S235JR
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
