Outside diameter (O): 95.2mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 23.6mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT

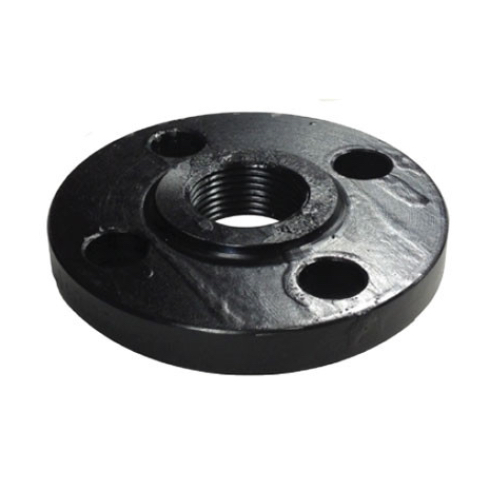

Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
