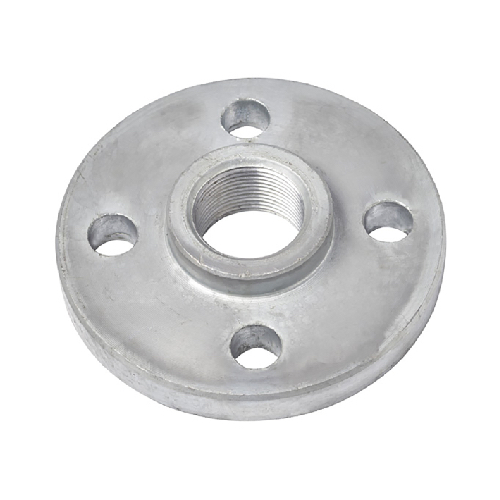

DN15 (1/2" NB) ASA150 1/2" NPT GALVANISED THREADED FLANGE CS A105N
Outside diameter (O): 88.9mm
Hub diameter at base (C): 11.1mm
Length through hub (X): 30.2mm
Pitch circle diameter (K): 60.4mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
Internal Reference:
CS-NB-FLA-15-RF-SCR-NPT-150-A105N-GAL
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
