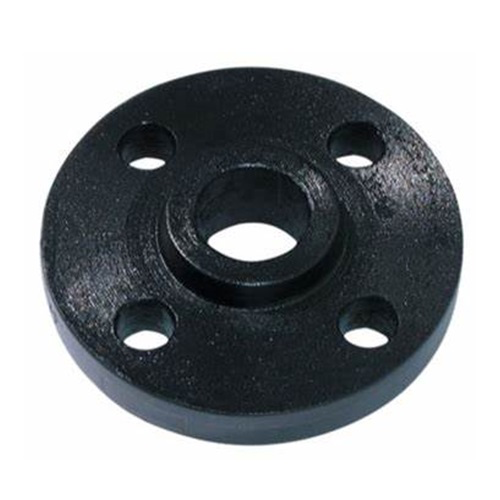

DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N

DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N

Product code: CS-NB-FLA-15-RF-SOB-ASA1500-A105N

(0 review)
Order other sizes
Product description

Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Carbon Steel
Grade A105N
Outside Diameter (mm) 21.30mm
Nominal Size DN15
Pressure Rating Class 1500
Flange Face Raised face (RF)
Contact Us
Material: Carbon Steel
Grade: A105N
Outside Diameter (mm): 21.30mm
Nominal Size: DN15
Pressure Rating: Class 1500
Flange Face: Raised face (RF)

Internal Reference: CS-NB-FLA-15-RF-SOB-ASA1500-A105N
