Outside diameter (O): 88.9mm
Hub diameter at base (C): 11.1mm
Length through hub (X): 30.2mm
Pitch circle diameter (K): 60.4mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore length (B): 22.3mm
Bore diameter (D): 9.6mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150

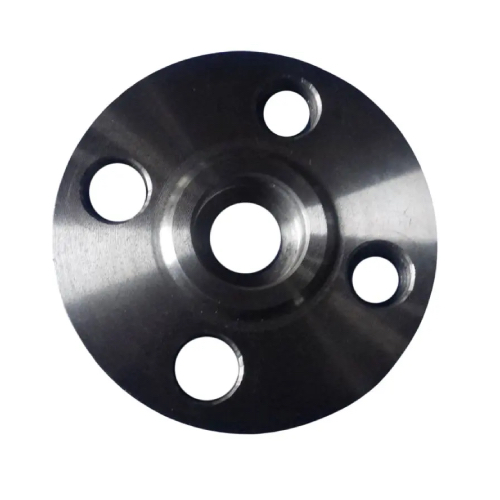

Type: Socket weld flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced
