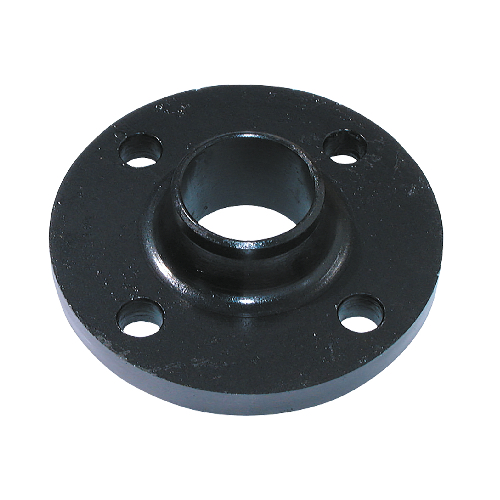

DN15 (1/2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Internal Reference:
CS-NB-FLA-15-RF-WN-S80-300-A105N
Specifications
| Outside Diameter (mm) | 21.30mm |
