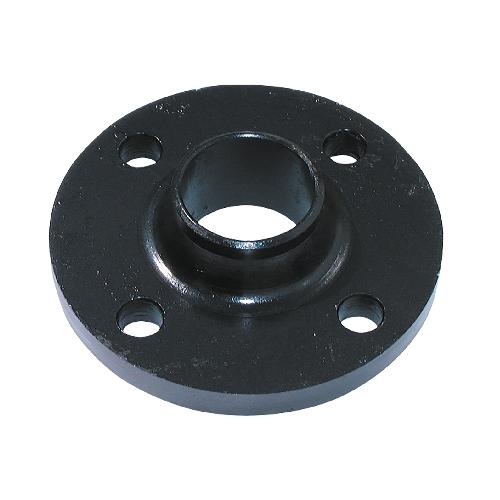

DN15 (1/2" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

DN15 (1/2" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/15761/image_1920?unique=59c8c40
(0 review)
Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 0.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-15-RF-WN-STD-S40-A150-A105N

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 21.30mm
