Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150

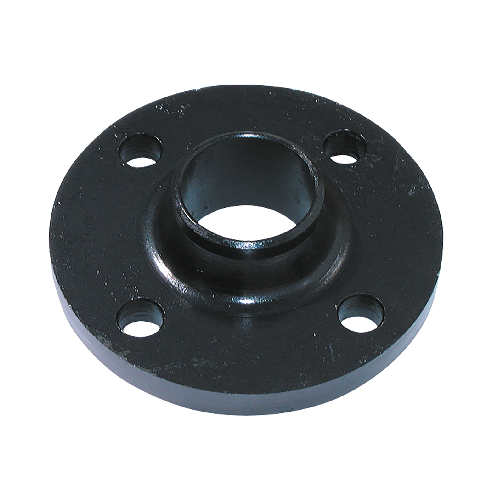

Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
