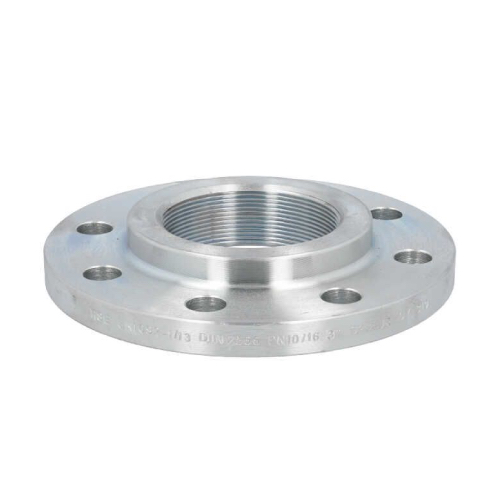

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6
