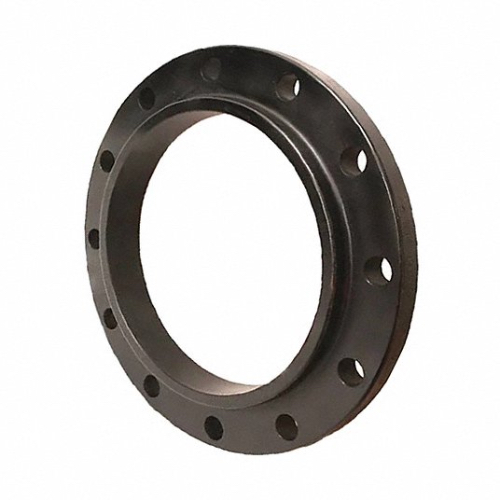

DN150 (6" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-150-RF-SOB-ASA300-A105N
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
14.1 KG
Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB
Internal Reference:
CS-NB-FLA-150-RF-SOB-ASA300-A105N
Specifications
| Size (Inch) | 6" |
| Outside Diameter (mm) | 168.30mm |
