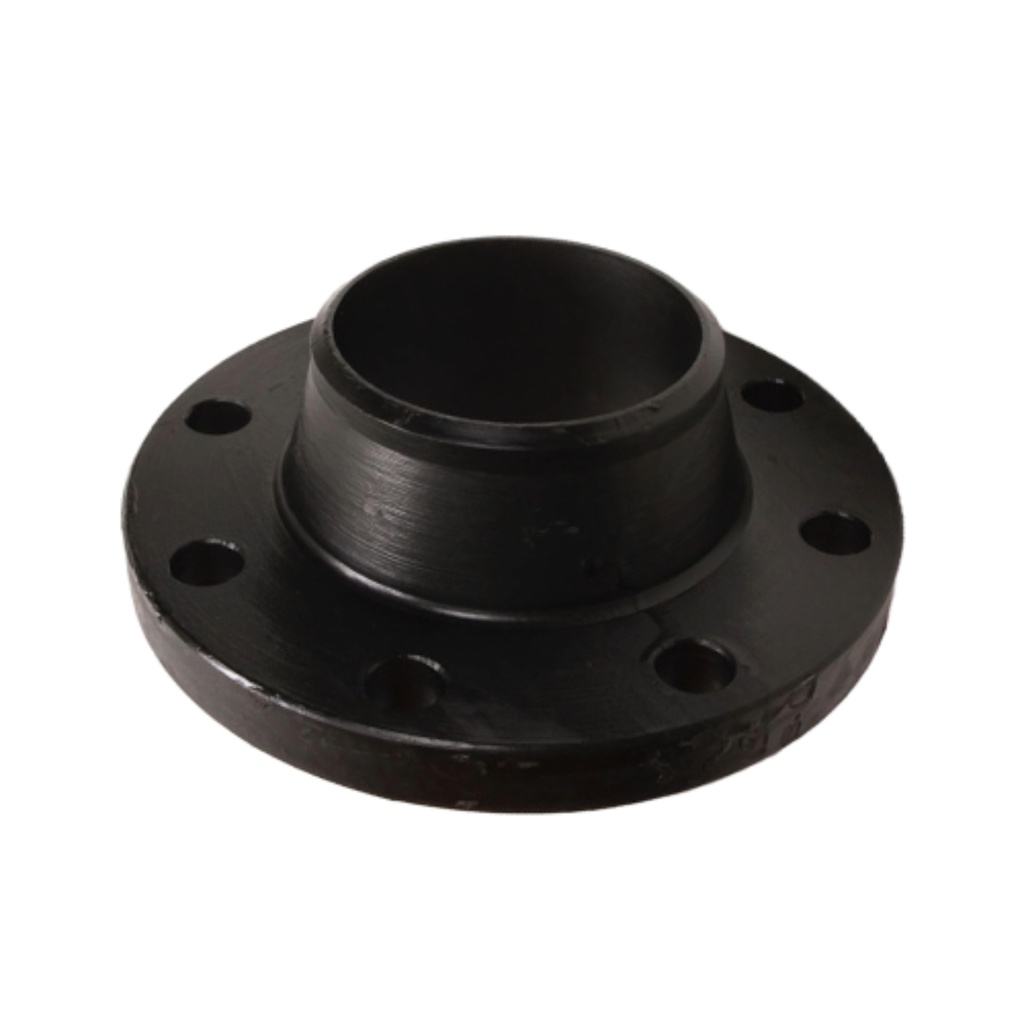

DN150 (6" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

DN150 (6" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-150-RF-WN-S40-300-A105N
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
20.2 KG
https://www.integraflow.co.uk/web/image/product.template/15834/image_1920?unique=8676e68
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 20.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-150-RF-WN-S40-300-A105N

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
