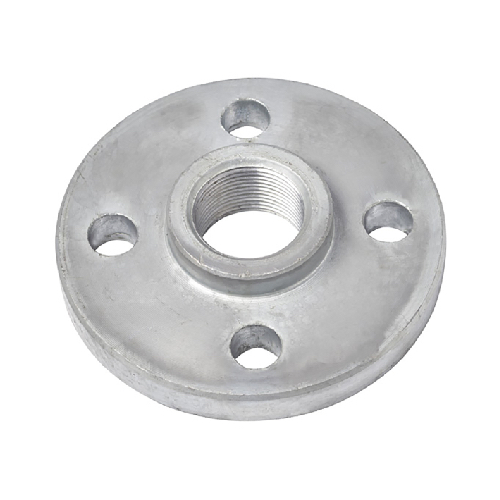

DN20 (3/4" NB) ASA150 3/4" NPT GALVANISED THREADED FLANGE CS A105N

DN20 (3/4" NB) ASA150 3/4" NPT GALVANISED THREADED FLANGE CS A105N

Product code: CS-NB-FLA-20-RF-SCR-NPT-150-A105N-GAL

(0 review)
Product description

Specifications

Nominal bore
DN20
Material
Carbon Steel
Grade
A105N
Finish
Galvanised
Connection
NPT
Flange type
Threaded
Flange face
Raised face
Drilling standard
ASME B16.5
Drilling designation
Class 150
Flange OD
98.5 mm
Flange ID
15.7 mm
PCD
69.8 mm
Bolt hole count
4
Raised face height
1.5 mm

Additional information

Hub diameter at base (C): 12.7mm
Length through hub (X): 38.1mm
Raised face diameter (Y): 15.7mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Material: Galvanised A105N
Rating: ASA 150
Type: Screwed flange (ASME B16.5)
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
