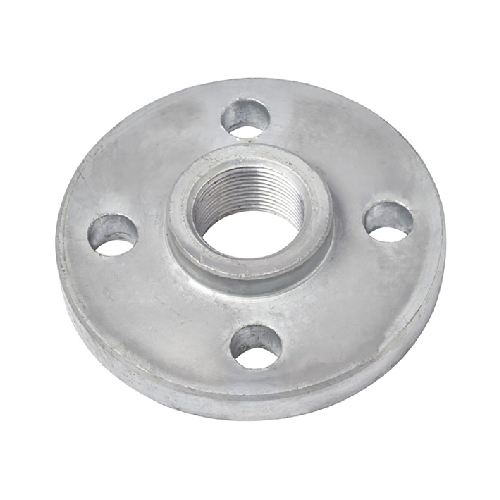

DN20 (3/4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED
Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
Internal Reference:
CS-NB-FLA-20-RF-SCR-PN6-S235JR-GAL
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
