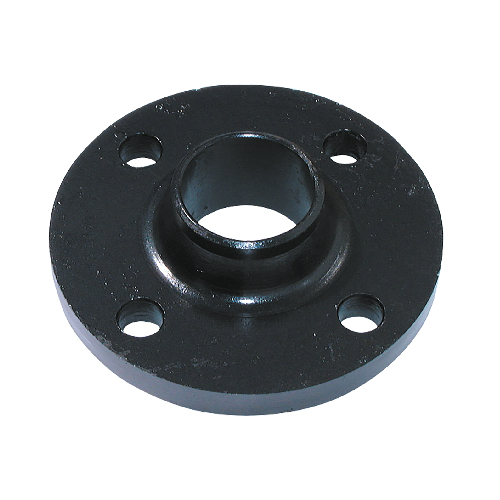

DN20 (3/4 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
Internal Reference:
CS-NB-FLA-20-RF-WN-S80-300-A105N
Specifications
| Outside Diameter (mm) | 26.70mm |
