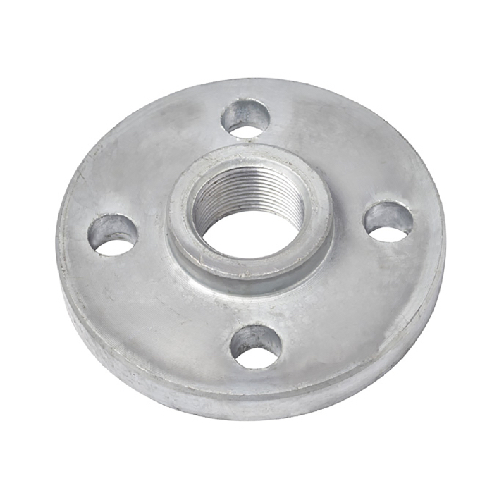

DN25 (1" NB) ASA300 1" NPT GALVANISED THREADED FLANGE CS A105N
Outside diameter (O): 123.9mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 53.8mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 35.8mm
Hub thickness (T): 17.5mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-25-FF-SCR-300-A105N-GAL
