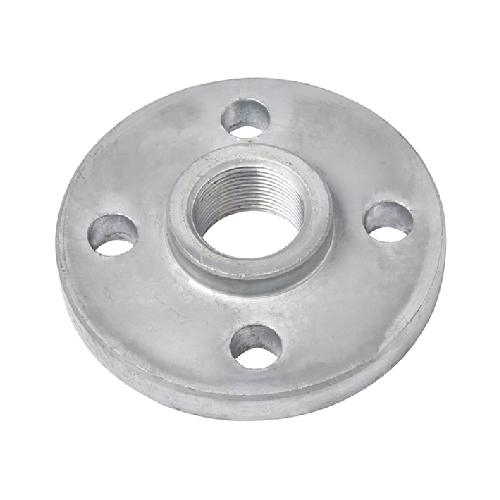

Outside diameter (O): 95.2mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 23.6mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 47.7mm
Pitch circle diameter (K): 82.5mm
Raised face diameter (Y): 25.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 28.9mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 53.8mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 35.8mm
Hub thickness (T): 17.5mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 133.3mm
Hub diameter at base (C): 19.0mm
Length through hub (X): 63.5mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 63.5mm
Bore diameter (Q): 44.4mm
Hub thickness (T): 20.5mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Hub diameter at base (C): 20.5mm
Length through hub (X): 69.8mm
Pitch circle diameter (K): 114.3mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 50.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

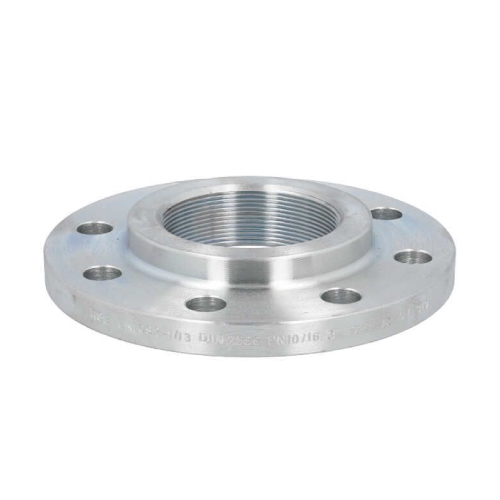

Outside diameter (O): 165.1mm
Hub diameter at base (C): 22.3mm
Length through hub (X): 84.0mm
Pitch circle diameter (K): 127.0mm
Raised face diameter (Y): 33.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 91.9mm
Bore diameter (Q): 63.5mm
Hub thickness (T): 28.4mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Hub diameter at base (C): 25.4mm
Length through hub (X): 100.0mm
Pitch circle diameter (K): 149.9mm
Raised face diameter (Y): 38.1mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 104.6mm
Bore diameter (Q): 76.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Hub diameter at base (C): 28.4mm
Length through hub (X): 117.3mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 42.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 92.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 254.0mm
Hub diameter at base (C): 31.7mm
Length through hub (X): 146.0mm
Pitch circle diameter (K): 200.1mm
Raised face diameter (Y): 47.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 117.6mm
Hub thickness (T): 36.5mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
