  3. DN25 (1" NB) ASA1500 RF BLIND FLANGE CS A105N
Website List 200 (IGF)

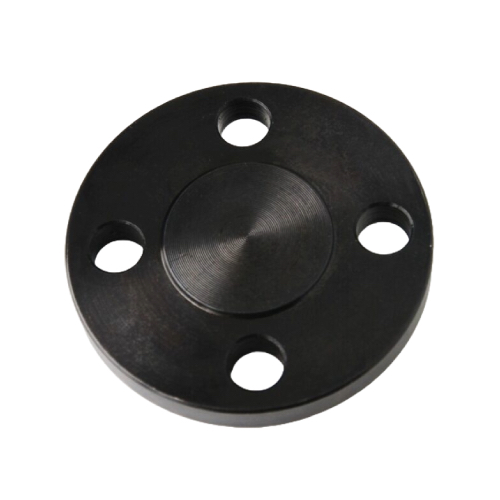

DN25 (1" NB) ASA1500 RF BLIND FLANGE CS A105N

DN25 (1" NB) ASA1500 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-25-RF-BLA-1500-A105N
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
3.6 KG
https://www.integraflow.co.uk/web/image/product.template/15693/image_1920?unique=dae48f3
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 3.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 149.3mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 101.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-25-RF-BLA-1500-A105N

Specifications

Size (Inch) 1"
Outside Diameter (mm) 33.40mm
