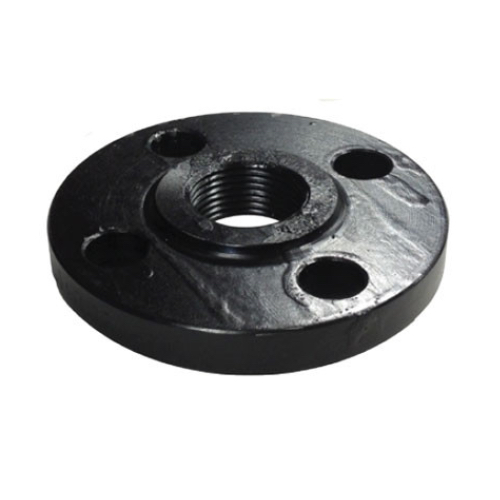

DN25 (1" NB) ASA150 1" NPT THREADED FLANGE CS A105N

DN25 (1" NB) ASA150 1" NPT THREADED FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-25-RF-SCR-NPT-150-A105N
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
0.9 KG
https://www.integraflow.co.uk/web/image/product.template/15467/image_1920?unique=dae48f3
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 0.90 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Outside diameter (O): 107.9mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 49.2mm
Pitch circle diameter (K): 79.2mm
Raised face diameter (Y): 17.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-25-RF-SCR-NPT-150-A105N

Specifications

Size (Inch) 1"
Outside Diameter (mm) 33.40mm
