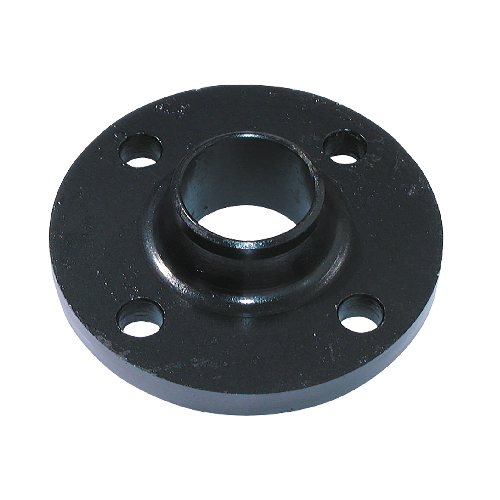

DN25 (1 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

DN25 (1 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-25-RF-WN-S80-300-A105N
Outside Diameter (mm)
33.40mm
Weight
1.9 KG
https://www.integraflow.co.uk/web/image/product.template/15864/image_1920?unique=dae48f3
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 1.90 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-25-RF-WN-S80-300-A105N

Specifications

Outside Diameter (mm) 33.40mm
