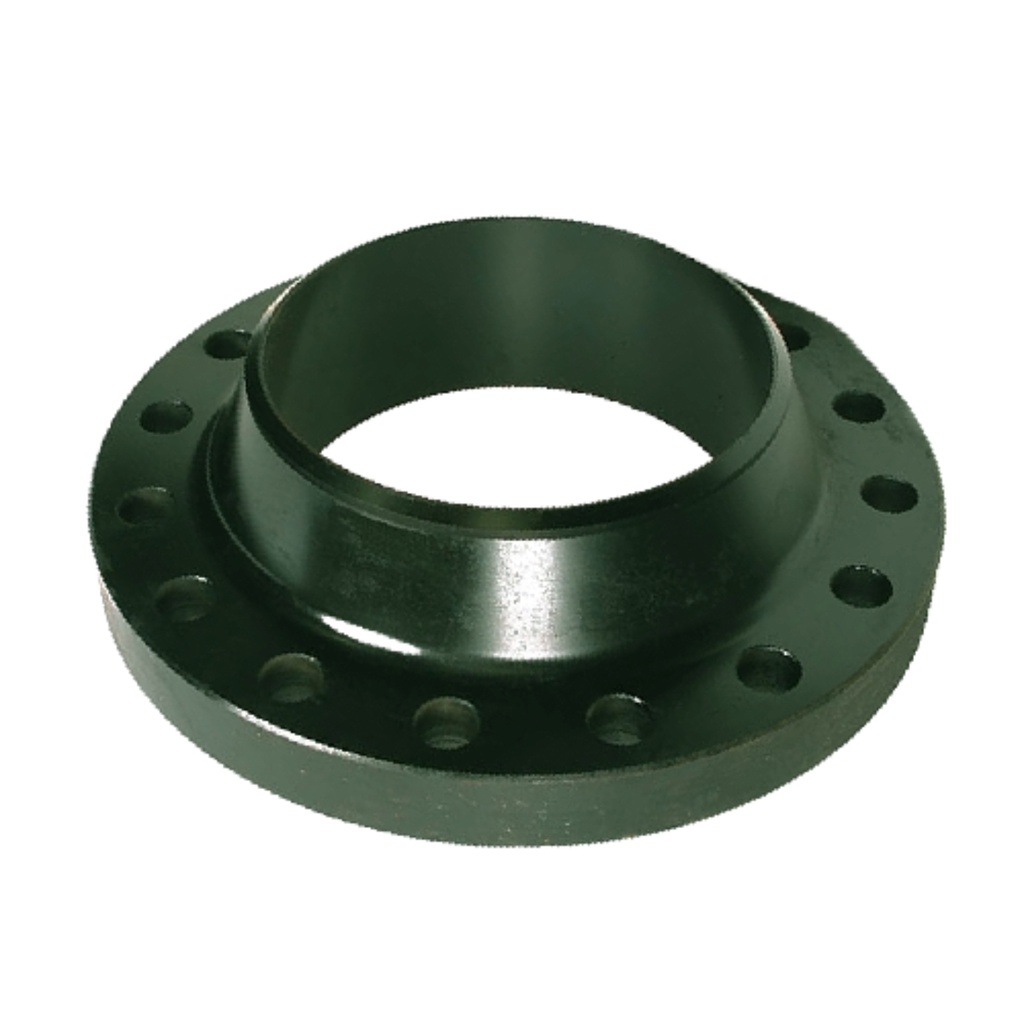

DN250 (10" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

DN250 (10" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-250-RF-WN-S40-300-A105N
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
44.3 KG
https://www.integraflow.co.uk/web/image/product.template/15836/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 44.30 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-250-RF-WN-S40-300-A105N

Specifications

Size (Inch) 10"
Outside Diameter (mm) 273.00mm
