Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150

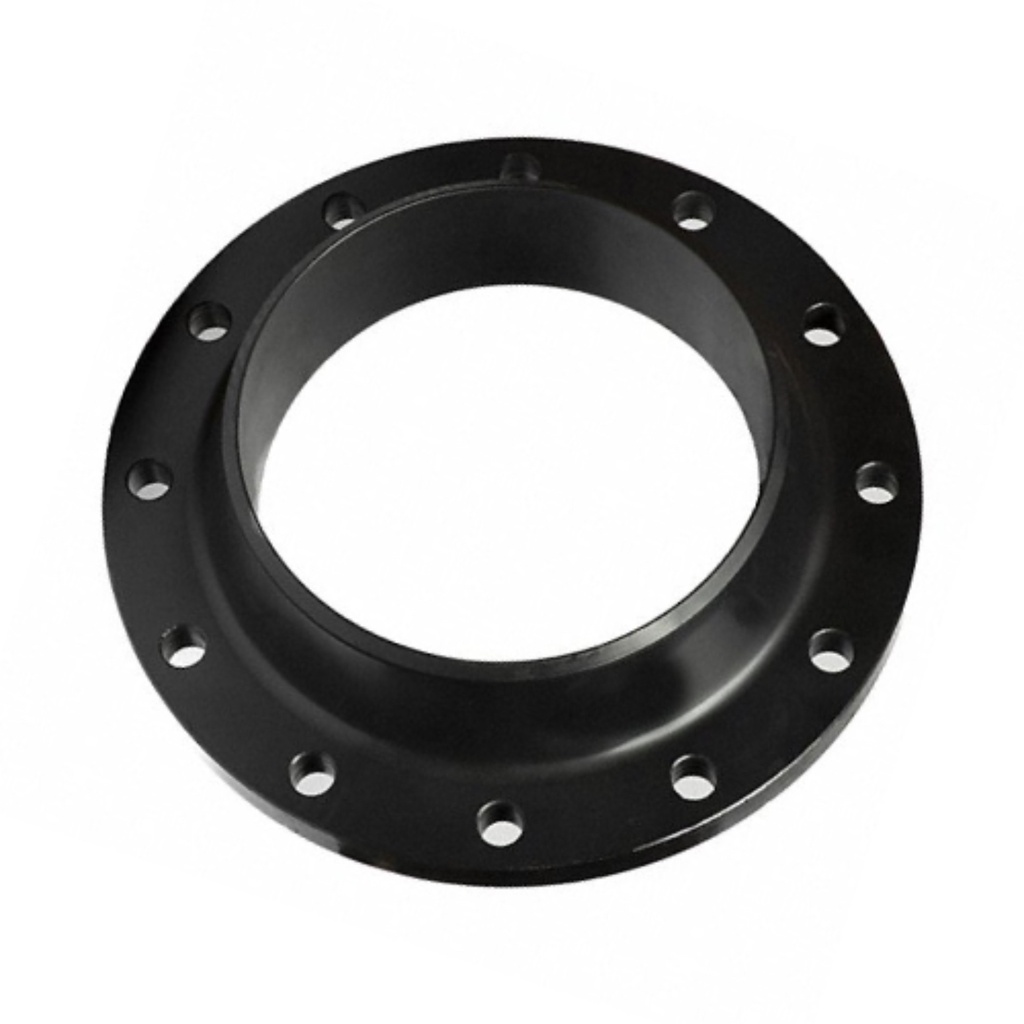

Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
