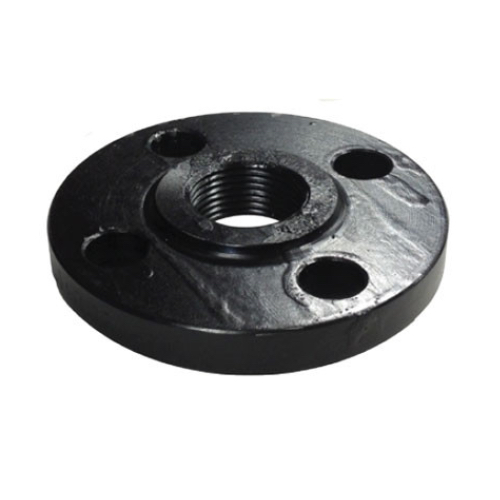

DN32 (1.1/4" NB) ASA300 1.1/4" NPT THREADED FLANGE CS A105N

DN32 (1.1/4" NB) ASA300 1.1/4" NPT THREADED FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-32-FF-SCR-300-A105N
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
1.9 KG
https://www.integraflow.co.uk/web/image/product.template/15526/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 1.90 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 133.3mm
Hub diameter at base (C): 19.0mm
Length through hub (X): 63.5mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 63.5mm
Bore diameter (Q): 44.4mm
Hub thickness (T): 20.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-32-FF-SCR-300-A105N

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
