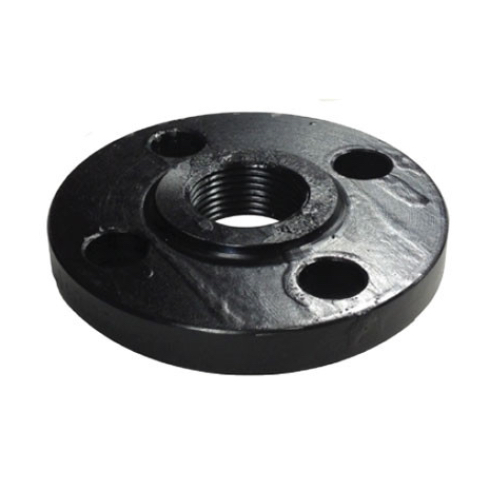

DN32 (1 1/4" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

DN32 (1 1/4" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

Technical Specification
Product Code
CS-NB-FLA-32-RF-SCR-P10-P16-P25-P40-S235JR-BLK
Size (Inch)
1/4"
Outside Diameter (mm)
42.20mm
Weight
1.81 KG
https://www.integraflow.co.uk/web/image/product.template/15205/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 1.81 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 140mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 30mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1 1/4"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-32-RF-SCR-P10-P16-P25-P40-S235JR-BLK

Specifications

Size (Inch) 1/4"
Outside Diameter (mm) 42.20mm
