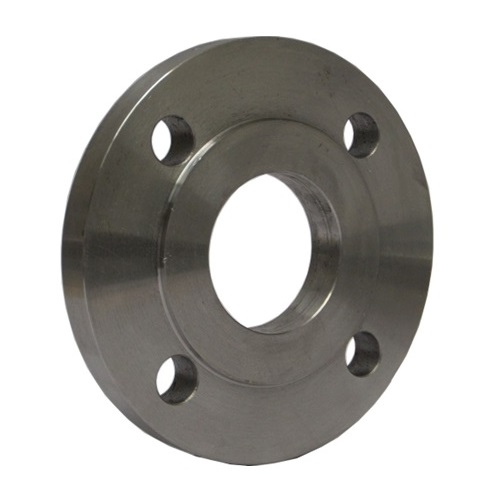

DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
New Project.webp

DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-32-RF-SO-P6-S235JR
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
1.16 KG
https://www.integraflow.co.uk/web/image/product.template/14942/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 1.16 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-32-RF-SO-P6-S235JR

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
