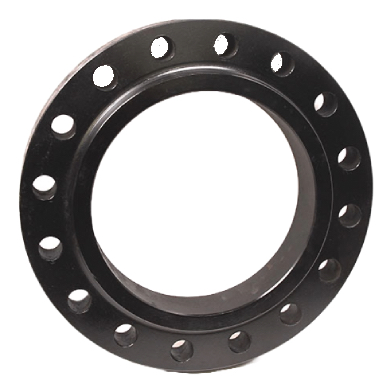

DN350 (14" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N

DN350 (14" NB) ASA1500 RF BOSSED SLIP ON FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-350-RF-SOB-ASA1500-A105N
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
340.0 KG
https://www.integraflow.co.uk/web/image/product.template/15168/image_1920?unique=2fe353f
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 340.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-350-RF-SOB-ASA1500-A105N

Specifications

Size (Inch) 14"
Outside Diameter (mm) 355.60mm
