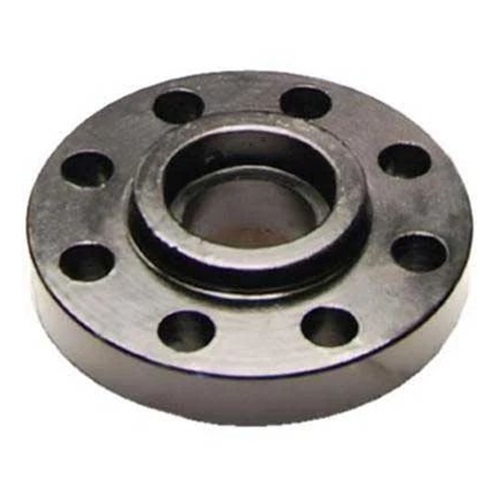

DN40 (1.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N (EUROPEAN ORIGIN)

DN40 (1.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N (EUROPEAN ORIGIN)

https://www.integraflow.co.uk/web/image/product.template/11164/image_1920?unique=1e99aaf
(0 review)

Suits an outside diameter (OD) of: 48.3mm
Material: CS
Grade: A105N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 16mm Ø
PCD: 98.4mm
Flange Diameter: 127mm
Flange Thickness: 19mm
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)

Alternative terminology:
Socket Weld, SW Flange, Weld on, Mild Steel, Carbon Steel

£ 30.00 30.0 GBP £ 30.00 Tax Excluded

Contact us for pricing

  • Pipework Standard
  • Size (Inch)
  • Outside Diameter (mm)
  • Connection A
  • Connection A
  • Connection B
  • Connection B
  • Material
  • Product Type
  • Pressure Class
  • Flange Standard

This combination does not exist.

​

Contact Us
Fittings Flanges



Terms and Conditions
Shipping: Generally 2-3 Business Days
Please contact us for accurate lead times.

Share

Trustpilot

Internal Reference: CS-NB-FLA-40-RF-SW-A150-A105N-EU

Specifications

Pipework Standard Nominal Bore
Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
Connection A Flanged, Socket Weld
Connection B Socket Weld, Flanged
Material Carbon Steel
Product Type Socket Weld Flange
Pressure Class 150 psi
Flange Standard ANSI 150
