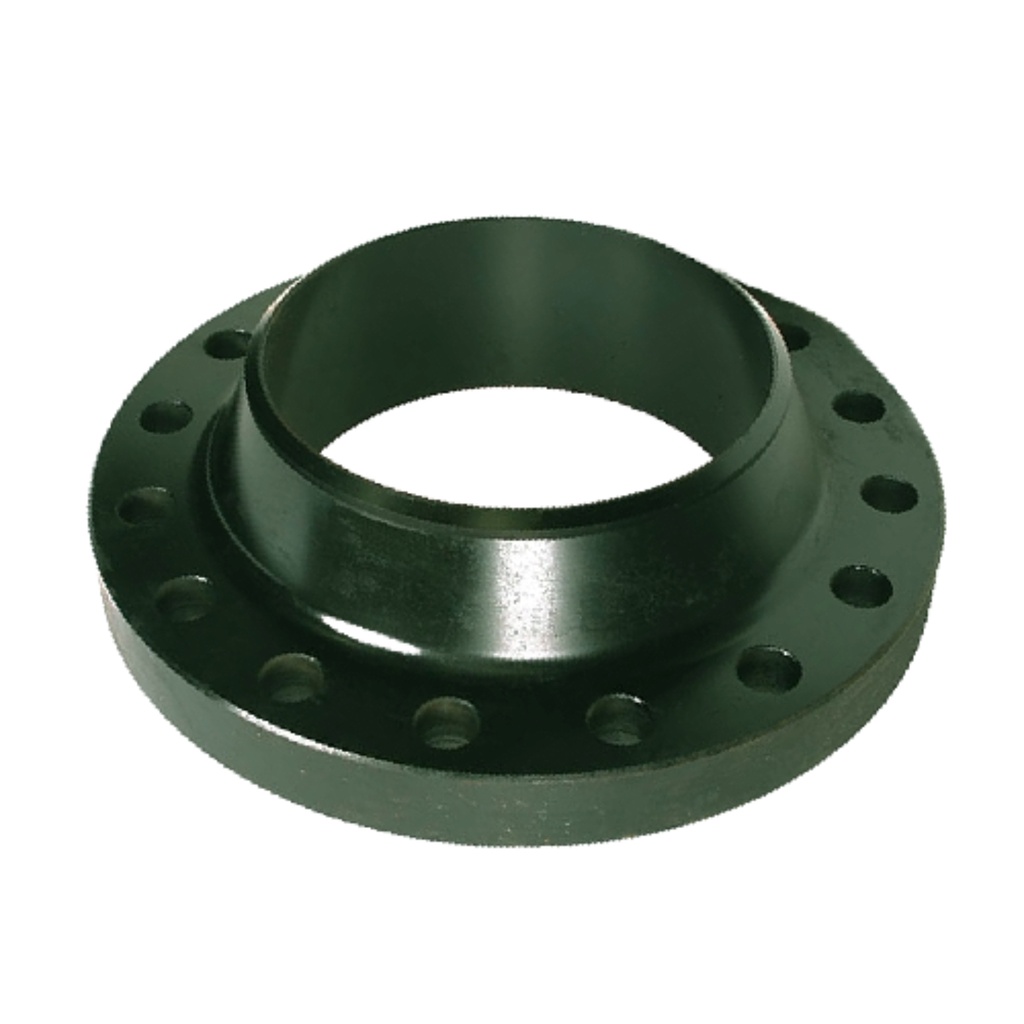

DN400 (16" NB) SCHEDULE STD WT ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Hub length (X): 457.2mm
Neck height (A): 393.7mm
Pitch circle diameter (K): 539.7mm
Hub base diameter (Y): 139.7mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Internal Reference:
CS-NB-FLA-400-RF-WN-STD-A150-A105N
Specifications
| Size (Inch) | 16" |
| Outside Diameter (mm) | 406.40mm |
