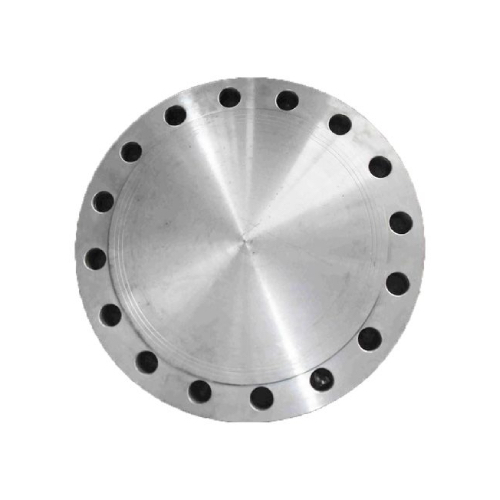

DN450 (18" NB) ASA150 RF BLIND FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-450-RF-BLA-150-A105N
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
97.0 KG
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-450-RF-BLA-150-A105N
Specifications
| Size (Inch) | 18" |
| Outside Diameter (mm) | 457.00mm |
