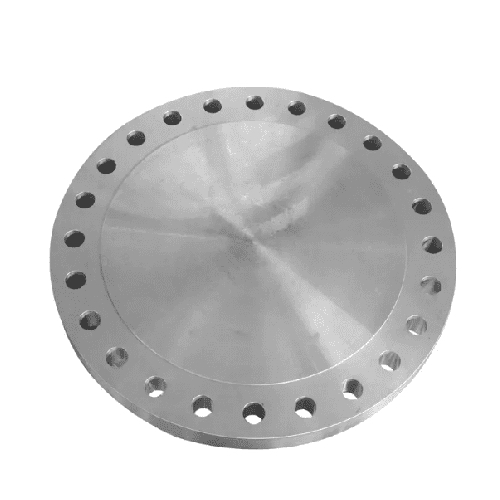

DN450 (18" NB) ASA1500 RF BLIND FLANGE CS A105N

DN450 (18" NB) ASA1500 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-450-RF-BLA-1500-A105N
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
795.0 KG
https://www.integraflow.co.uk/web/image/product.template/15707/image_1920?unique=7f6b2af
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 795.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 914.4mm
Flange thickness (C): 162.0mm
Pitch circle diameter (K): 774.7mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-450-RF-BLA-1500-A105N

Specifications

Size (Inch) 18"
Outside Diameter (mm) 457.00mm
