Product Information

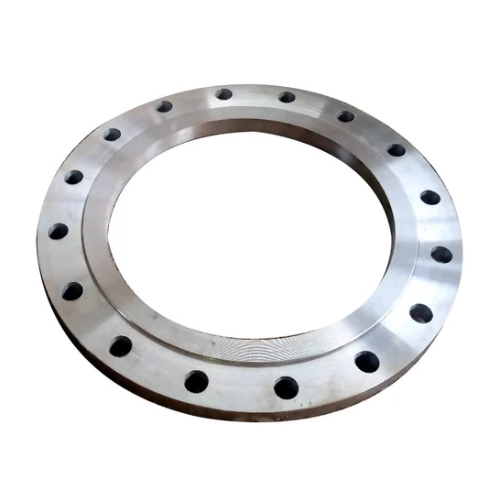

DN450 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Internal Reference:
CS-NB-FLA-450-RF-SO-P10-S235JR
