PN10

List 600
Sort By: Name (A-Z)

PN10

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP

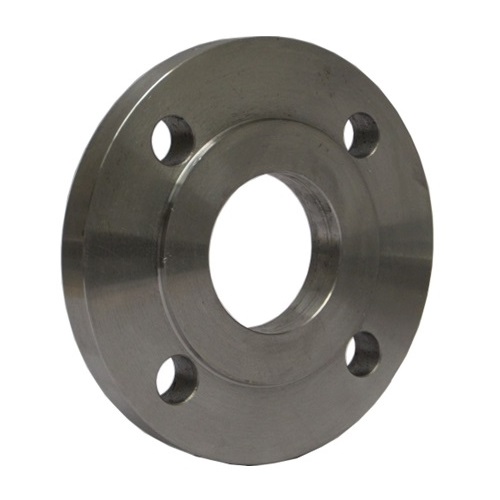

DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP

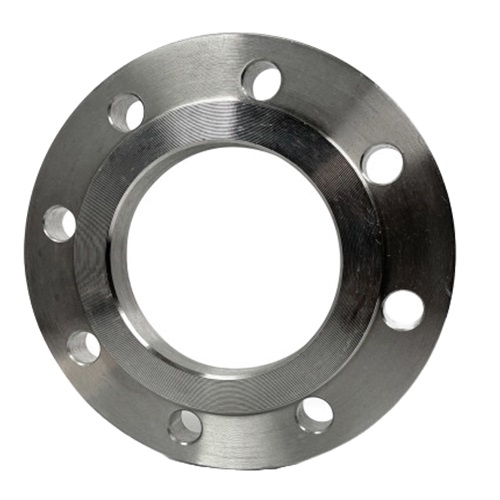

DN125 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN250 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 91.98 91.98 GBP
DN300 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

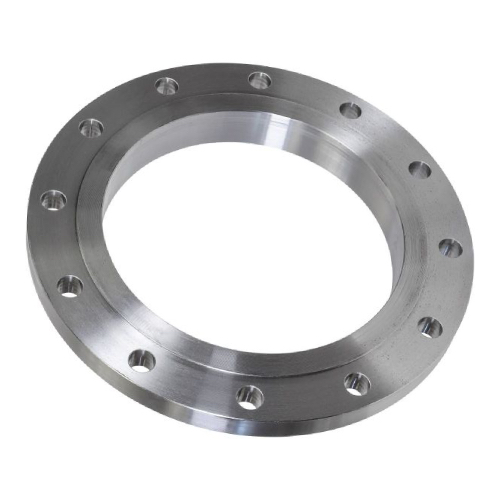

DN350 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN400 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 565mm (D)
PCD: 515mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

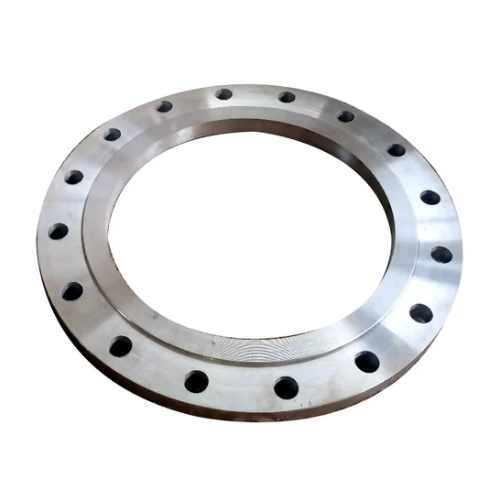

DN450 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 315.49 315.49 GBP
DN500 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

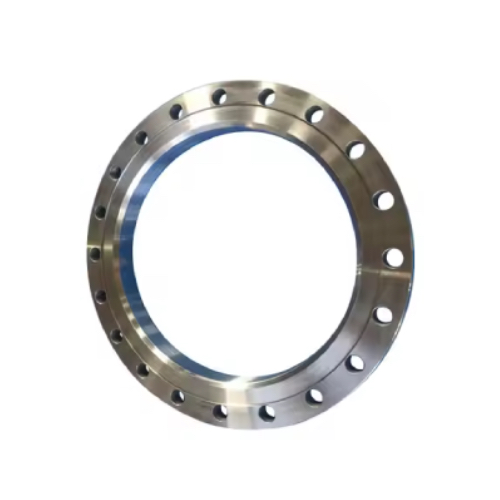

DN600 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 509.95 509.95 GBP
DN700 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 895mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

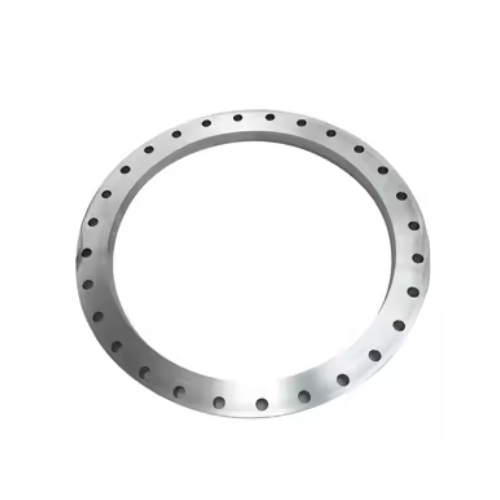

DN800 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1015mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 30mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN900 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1115mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 62mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN1000 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN1200 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
