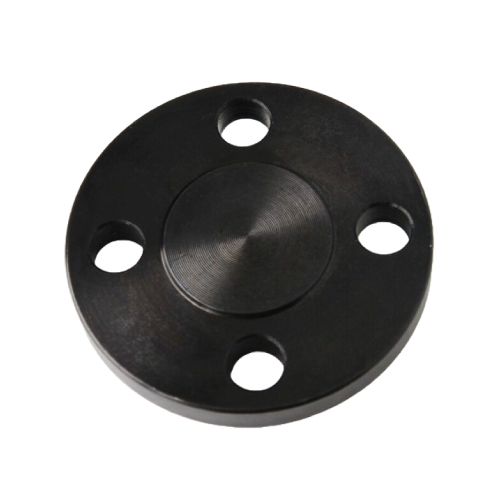

DN50 (2" NB) ASA150 RF BLIND FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-50-RF-BLA-150-A105N
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
2.6 KG
Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-50-RF-BLA-150-A105N
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 60.30mm |
