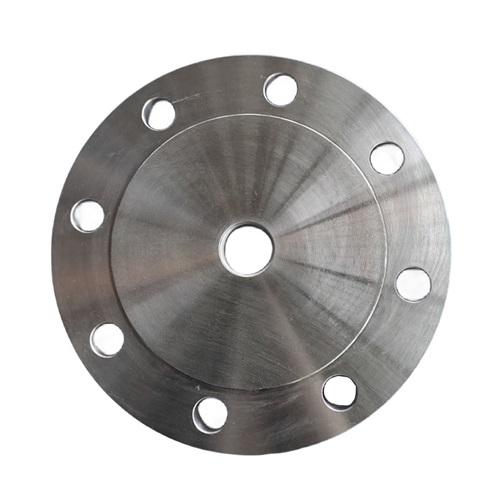

DN50 (2" NB) ASA1500 RF BLANK FLANGE CS A105N TAPPED 1/2" BSPT CENTRE HOLE (EUROPEAN ORIGIN)

DN50 (2" NB) ASA1500 RF BLANK FLANGE CS A105N TAPPED 1/2" BSPT CENTRE HOLE (EUROPEAN ORIGIN)

https://www.integraflow.co.uk/web/image/product.template/11089/image_1920?unique=1e99aaf
(0 review)

Suits an outside diameter (OD) of: 60.3mm
Material: CS
Grade: A105 N
Standards: ASME B16.9 / ASA1500
Flange Face: Raised
Bolt Holes: 8 off 25.4mm Ø
PCD: 165.1mm
Flange Diameter: 215.9mm
Flange Thickness: 38.1mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Blind, Blank, Drilled & Tapped, BSPT Female, Test Plate, Blanking Flange, Mild steel, Carbon Steel, Termination, RFB

£ 354.00 354.0 GBP £ 354.00 Tax Excluded

Contact us for pricing

  • Pipework Standard
  • Size (Inch)
  • Outside Diameter (mm)
  • Connection A
  • Connection A
  • Connection B
  • Connection B
  • Material
  • Product Type
  • Pressure Class
  • Flange Standard

This combination does not exist.

​

Contact Us
Flanges



Terms and Conditions
Shipping: Generally 2-3 Business Days
Please contact us for accurate lead times.

Share

Trustpilot

Internal Reference: CS-NB-FLA-50-RF-BLANK-DT15-BSPT-A1500-A105N-EU

Specifications

Pipework Standard Nominal Bore
Size (Inch) 2"
Outside Diameter (mm) 60.30mm
Connection A Flanged, Threaded (BSP)
Connection B Flanged, Threaded (BSP)
Material Carbon Steel
Product Type Blank / Blind Flange
Pressure Class 1500psi
Flange Standard ANSI 1500
