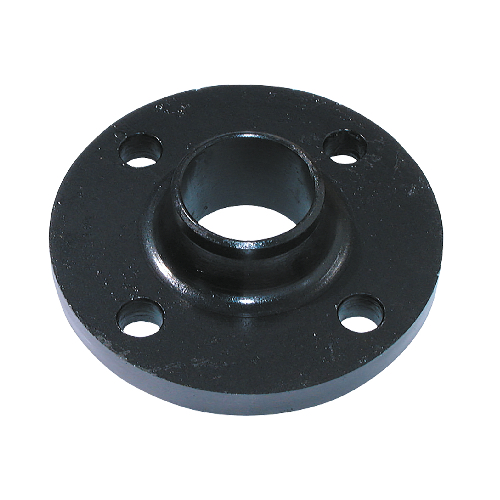

DN50 (2" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

DN50 (2" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-50-RF-WN-STD-S40-P40-A105N
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
2.85 KG
https://www.integraflow.co.uk/web/image/product.template/22564/image_1920?unique=7f6b2af
(0 review)

£ 27.81 27.81 GBP £ 27.81 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 2.85 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 165.00mm
Flange thickness (C): 20mm
Pitch circle diameter (K): 125.00mm
Hub base diameter (Y): 75.00mm
Raised face height (RF): 3.0mm
Raised face diameter (R): 102.00mm
Number of bolt holes: 4
Material: A105N
Rating: PN40
Type: Weld Neck Flange (Type 11)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, PN40, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-50-RF-WN-STD-S40-P40-A105N

Specifications

Size (Inch) 2"
Outside Diameter (mm) 60.30mm
