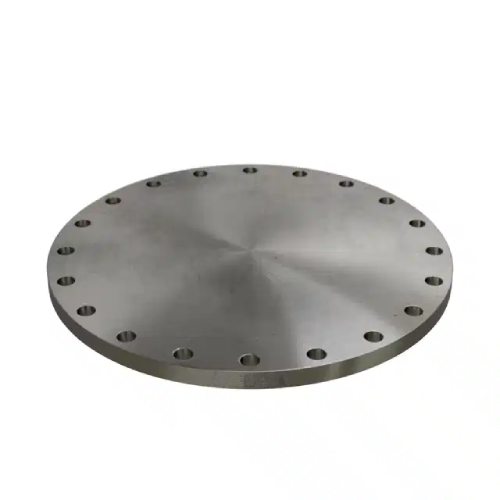

DN500 (20" NB) PN16 FF BLIND FLANGE CS S235 JR

DN500 (20" NB) PN16 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-500-FF-BLA-P16-S235JR
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
64.0 KG
https://www.integraflow.co.uk/web/image/product.template/15378/image_1920?unique=292fe87
(0 review)

£ 530.40 530.4 GBP £ 530.40 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 64.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 715mm
Drilling (No. x Bolt Hole x L): 20 x M30 x 33mm
Pitch circle diameter (K): 650mm
Flange thickness (C1): 50mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-500-FF-BLA-P16-S235JR

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
